FAQ

Can Sportsmatch scope mounts be used on centrefire rifles?

Yes, we offer a range of dedicated scope mounts for Tikka and CZ centrefire rifles. We also offer a range of Picatinny scope rings that are regularly used by military special forces and police sniper units. Other users of our firearm rated products include professional vermin controllers and long-range target shooters.

Do I need medium or high scope mounts?

Height of Scope Mount Required
In each product catergory we state a maximum (upto) objective lens diameter dimension. Due to both rifle and scope designs varying this can only be used as a guide. If you are unsure that the height of the Sportsmatch scope mount you have chosen will be sufficient to clear your rifle scopes objective lens from the barrel of your rifle, we suggest (prior to purchase) you check. The way you calculate the clearance is by halving the overall outside diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter. For scopes with a 1" inch diameter body tube diameter this would mean deducting 12.7mm, 15mm for scopes with a 30mm diameter body tube and 17mm for 34mm scopes. This dimension then gives the figure comparible with the 'A' dimension that is shown below. The amount our 'A' dimension is greater than the figure you have calculated is the amount of clearance your scopes objective lens will be clear of your rifles barrel (dont forget to allow around 2mm for the scope covers). Calculating your rifle scopes clearance in this way does assume your dovetail or Picatinny rail is not raised above or below your rifles barrel. Please consider that rifles with grooved receivers such as some models of airgun and .22 rimfire rifle will mean the scope sits lower than a rifle with a raised dovetail or Picatinny base fitted. Something else to consider is that some rifles with a high or adjustable cheek pieces may require high or extra scope mounts so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.

How much should I tighten the fasteners on my Sportsmatch® scope mount?

Ring screws (3mm hexagon) – 15 in-lbs.  Dovetail clamp screws with 3mm hexagon – 38 in-lbs.  Dovetail clamp screws with 4mm hexagon – 55 in-lbs.  Rail clamp on Picatinny / Weaver scope mounts - 28 in-lbs.  Due to many variables these figures can only be used as a guide.  In extreme cases some particularly heavy recoiling rifles may require higher levels of torque to be applied to the dovetail clamp screws only.  To avoid damaging the screws on your scope mount please only use the allen key supplied or a torque wrench with a suitable metric bit.

I have lost the instructions for my Sportsmatch® model – HST46C, AOP55, AOP56, ATP61, ATP65, ATP66, ATP72, ATP94, ATP90, ATP6113MM

Please open the appropriate pdf file below and print if required.

HST46C

AOP55

AOP56

ATP61

ATP65

ATP66

ATP72

ATP94

ATP90

ATP6113MM

How do I fit the EASYFIT arrestor pin to my Sportsmatch mount?

easyfit1easyfit2easyfit3easyfit4

How do I fit the arrestor pin to my Sportsmatch scope mount?

1) Line up the arrestor pin with the hole as shown.

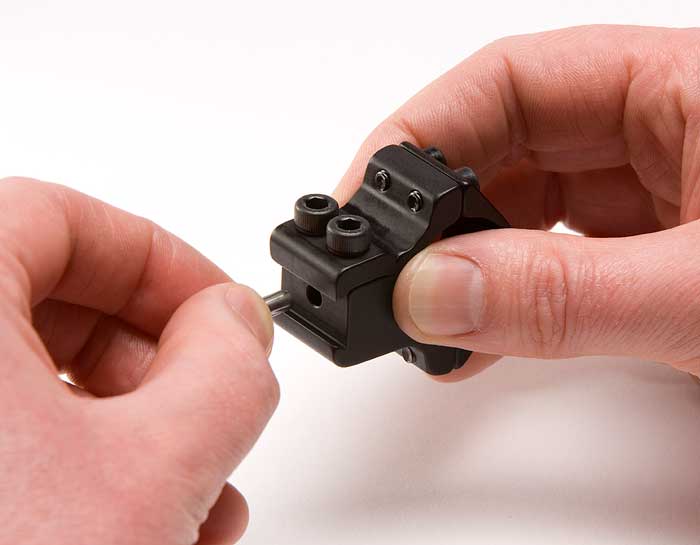

how-to-fit-the-arrestor-pin2

2) Insert the arrestor pin as far as you can using your fingers.

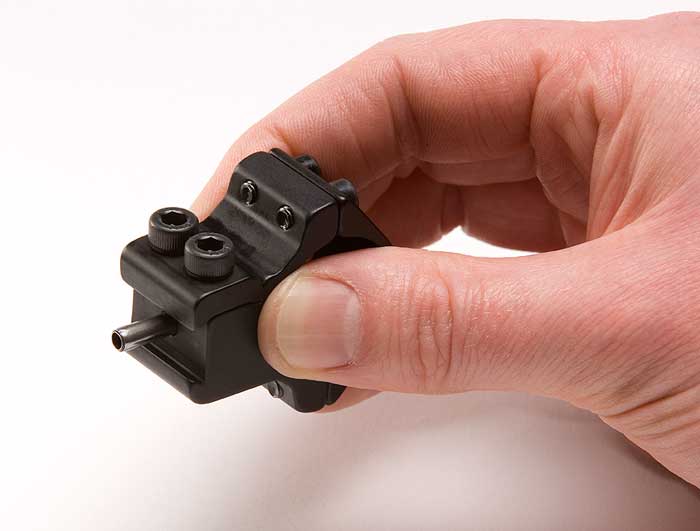

how-to-fit-the-arrestor-pin1

3) Push the arrestor pin on a suitable hard surface.

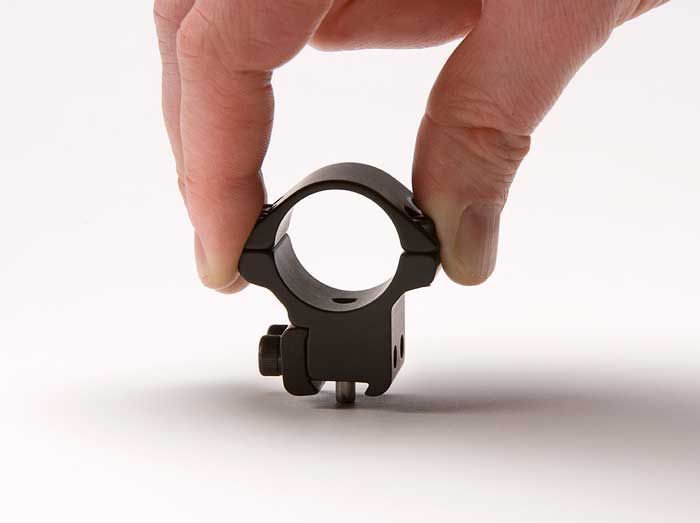

how-to-fit-the-easy-fit1

4)

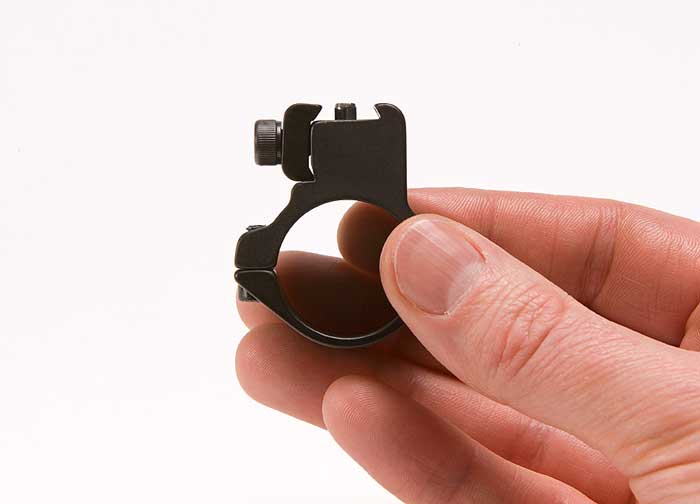

how-to-fit-the-easy-fit2

How do I remove the arrestor pin from my Sportsmatch scope mount?

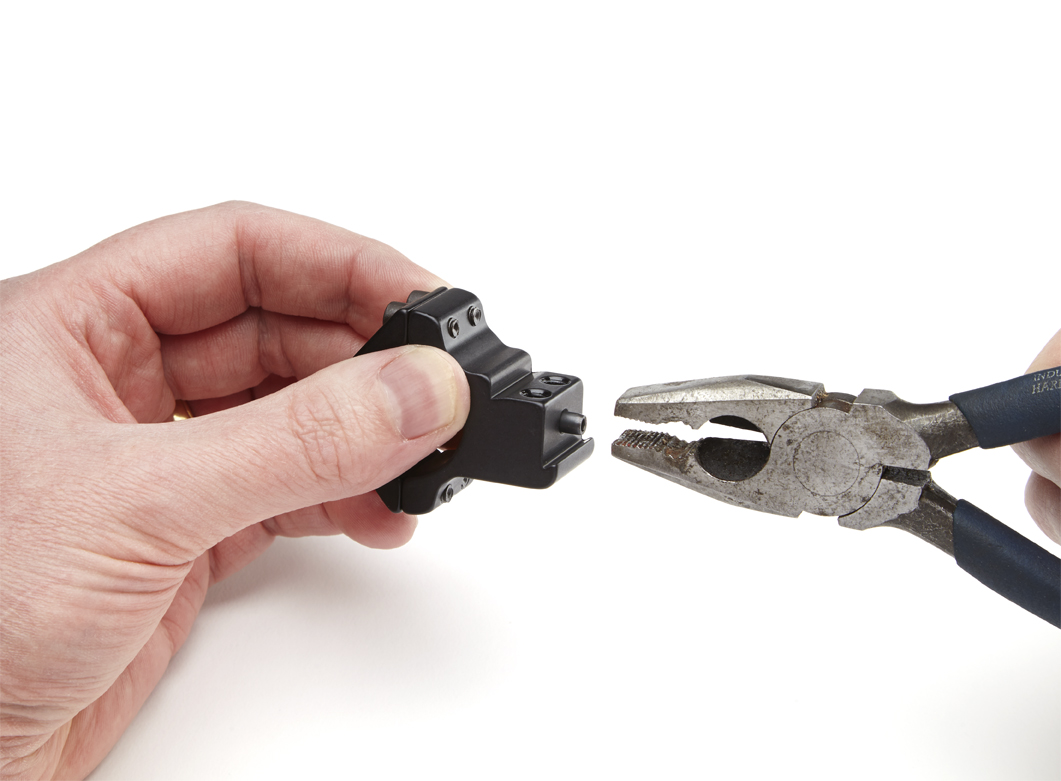

The easiest way is to firstly remove the dovetail clamp and then remove the arrestor pin with pliers as shown. Alternatively the arrestor pin can be carefully tapped out using a suitable drift.

PIN REMOVAL1

Which rifle scopes do your scope rings fit?

Sportsmatch Scope Rings / Scope Mounts will fit the following rifle scopes - Aimpoint Athlon Barska Bushnell BSA Burris Centrepoint Delta Docter Discovery Element Optics Falcon Hawke IOR Kahles Konus Leapers Leica Leupold March Meopta Minox MTC Nightforce Nikon Nikko Sterling Optisan Pecar Redfield Richter Sabre Schmidt & Bender Sellmark Sightmark Sightron Simmons Steiner Sunscope Swarovski Tasco UTG Vortex Walther Weaver Yukon Zeiss and many more !

Which rifles / air rifles do your scope rings fit?

Sportsmatch Scope Rings / Scope Mounts will fit the following rifles and air rifles - Accuracy International Air Arms Airforce Anschutz Airgun Technology Ataman Barrett Beeman Benjamin Bergara Brocock Browning BSA Cometa Crosman CZ Daisy Dakote Daystate Diana Edgun Evanix Falcon Feinwerkbau FX Gunpower Hammerli Hatsan Henry Howa Heckler & Koch Impact Kahr Kelby Kimber Kral Krieghoff Lithgow Lynx Magtech Marlin Merkel Mossberg Pallas Parker Hale Remington RWS Sako 90 Sig Sauer Savage Schultz & Larsen Stoeger Sheridan SMK Steyr Mannlicher Theoben Tikka Umarex Voerre Walther Webley & Scott Weihrauch Weatherby Winchester Zastava and many more centrefire rifles, rimfires and pellet guns.

Do Sportsmatch recommend using Loctite on the bolts when mounting your scope?

No, we do not recommend the use of Loctite on our scope mounts as in our experience it is not necessary and often means that screws cannot be removed. We recommend checking bolts are tight every few months.

end faq


How to fit your Scope Mounts / Scope Rings when Mounting a Scope
